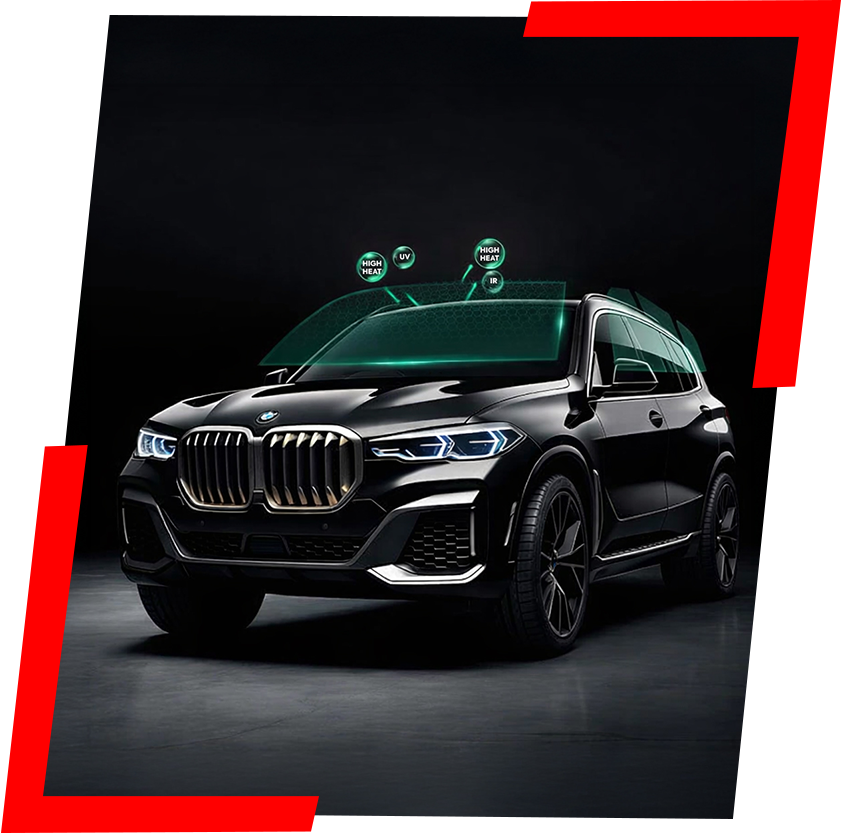

Premium IR Series - Ceramic Film
The IR Series Film with excellent 99% IR rejection and opti-cal clarity. It creates a shield over the glass and collects larger amounts of rays and heat while stopping them from entering the Windows.
| Product Name | IR-05 | IR-35 | IR-50 | IR-70 (Blue, Black & Green) |
IR-80 (Blue) |
IR-08 (SPUTTER) |
|---|---|---|---|---|---|---|
| Thickness | 2 mil | 2 mil | 2 mil | 2 mil | 2 mil | 2 mil |
| IR Rej: Infrared Rejection | 99% | 99% | 99% | 99% | 99% | 94% |
| UV Rej: Ultraviolet Rejection | 99% | 99% | 99% | 99% | 99% | 99% |
| Glare Reduction | 89% | 66% | 32% | 21% | 21% | 92% |
| Film Specification | 1.52*30m | 1.52*30m | 1.52*30m | 1.52*30m | 1.52*30m | 1.52*30m |
| VLT: Visible Light Transmission | 5% | 35% | 50% | 70% | 80% | 8% |
| VLR: Visible Light Reflection | 8% | 8% | 8% | 8% | 8% | 8% |
| TSER: Total Solar Energy Rejected | 82% | 68% | 62% | 51% | 51% | 78% |
| SR Hardness | >2H | >2H | >2H | >2H | >2H | >2H |
FEATURES
Superb Durability. Resistance To Salt-Content Environment
UV Rejection 100% Dye Free And 100% Metal-Free
Natural Tone With Low Reflectivity
High Total Solar Energy Rejection
High Ultra-Violet Rejection >99%
Scratch Resistant Hard-Coat

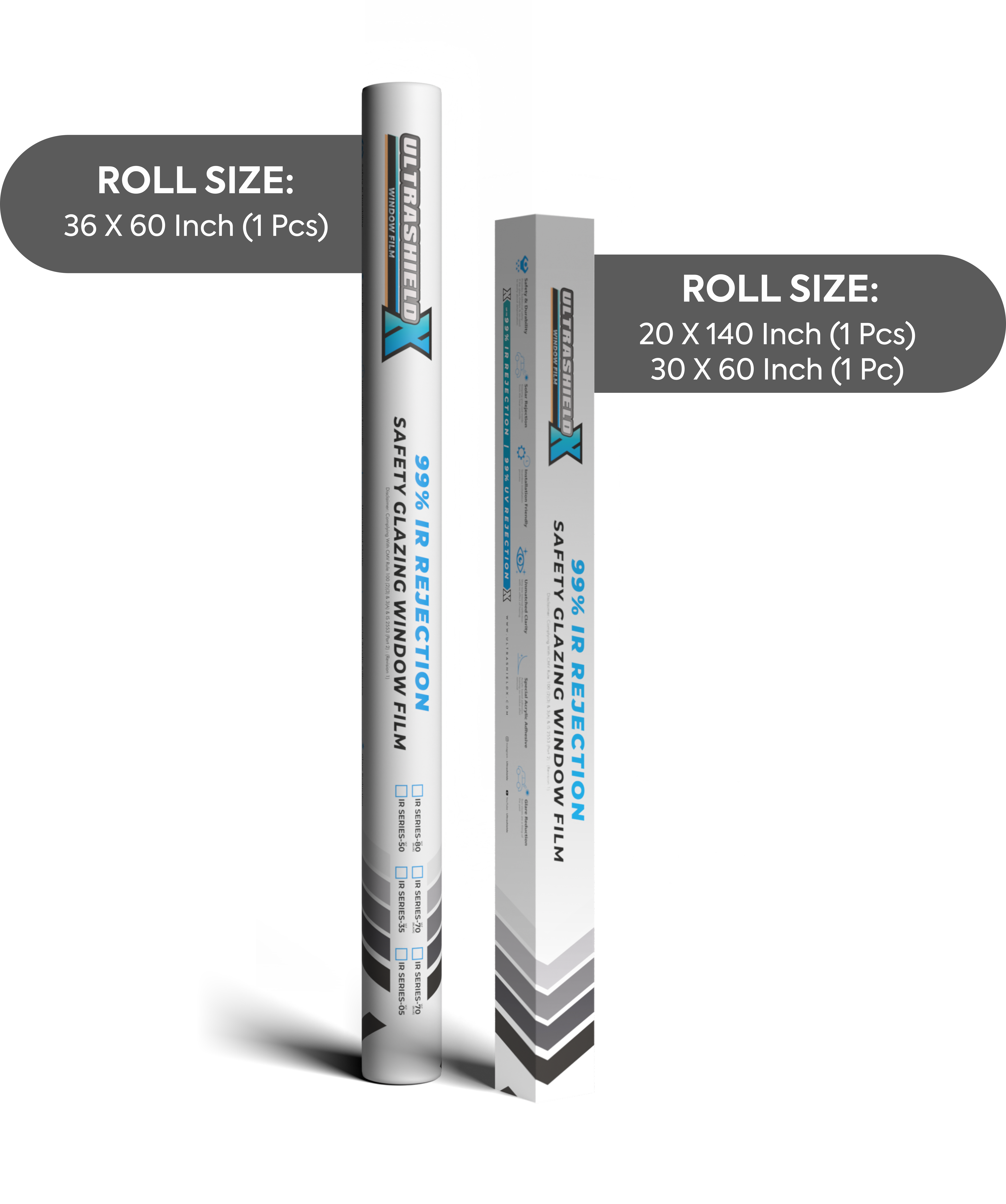

CERAMIC FILM KIT
Check our exclusive benefits that make our Single Kit a complete protection solution.
| AVAILABLE KIT | |
|---|---|
| IR SERIES-80 VLT (BLUE) | IR SERIES-70 VLT (BLACK) |
| IR SERIES-70 VLT (BLUE) | IR SERIES-50 VLT |
| IR SERIES-35 VLT | IR SERIES-05 VLT |
BENEFITS OF SINGLE KIT
Check our exclusive benefits that make our Single Kit a complete protection solution.
All-in-One Convenience
Cost-Eective
Perfect Fit
Easy DIY Installation
Professional-Grade Quality
Quick Upgrade
IR - Sputter Tint Film
Sputter Tint Film, also known as magnetron sputtering metal film, is made by multi-layer magnetron sputtering process techology, It has excellent performance of long-lasting reflection and heat insulation. Because of its high definition, high heat insulation, high stability , low internal reflection, pure color, never fade, long life span and many other characteristics, it was once widely used in automobile tint films.
| IR 08 SUTTER | |
|---|---|
| Thickness | 2 mil |
| IR Rej: Infrared Rejection | 94% |
| UV Rej: Ultraviolet Rejection | 99% |
| Glare Reduction | 92% |
| Film Specifiction | 1.52*30m |
| VLT: Visible Light Transmission | 8% |
| VLR: Visible Light Reflection | 8% |
| TSER: Total Solar Energy Rejected | 78% |
| SR Hardness | >2H |
PROTECT SKIN
BY UV RAYS
SECURITY &
ANTI-EXPLOSION
PRIVACY
PROTECTION
HEAT
INSULATION
Advanced Carbon Tint Clear. Tool. Protected.
UltrashieldX Carbon Window Film offers stable carbon-based performance with long-lasting color, clear visibility, and enhanced privacy. Engineered for Indian climates, it provides up to 65% IR rejection and 99% UV protection, reducing heat and glare with zero signal interference.
| Product Name | 15% VLT | 35% VLT | 50% VLT | 70% VLT | 80% VLT | CARBON CERAMIC 80% VLT |
|---|---|---|---|---|---|---|
| Thickness | 1.8 mil | 1.8 mil | 1.8 mil | 1.8 mil | 1.8 mil | 2.0 mil |
| IR Rej: Infrared Rejection | 54±3 | 35±3 | 26±3 | 20±3 | 20±3 | 55±2 |
| UV Rej: Ultraviolet Rejection | 97% | 95% | 90% | 90% | 90% | 99% |
| Glare Reduction | 90% | 65% | 39% | 39% | 39% | 39% |
| Film Specification | 1.52*30m | 1.52*30m | 1.52*30m | 1.52*30m | 1.52*30m | 1.52*30m |
| VLT: Visible Light Transmission | 15±2 | 35±2 | 50±2 | 70±2 | 80±2 | 80±2 |
| VLR: Visible Light Reflection | 5% | 5% | 6% | 7% | 7% | 5% |
| TSER: Total Solar Energy Rejected | 0.53 | 0.42 | 0.31 | 0.25 | 0.25 | 0.33 |
| SR Hardness | >2H | >2H | >2H | >2H | >2H | >2H |
| WARRANTY | 3 YEARS | 3 YEARS | 3 YEARS | 3 YEARS | 3 YEARS | 5 YEARS |
FEATURES & BENEFITS
Premium Carbon Film
High-quality carbon layer that improves durability and performance.
Excellent Shrinkage
Easily adapts to curved glass for a smooth and perfect fit.
High-Strength Adhesives
Strong adhesive ensures long-lasting film bonding.
Glare Reduction
Reduces sunlight glare for a more comfortable driving experience.
Real Color Stable
Maintains original color without fading over time.
Real Heat Rejection
Blocks heat effectively to keep the car interior cooler.
Zero Metal Content
Non-metal film that does not interfere with signals.
Unmatched Optical Clarity
Provides clear visibility without distortion.
EXPLORE Magnetron Sputtering & Magnetron Sputtering Aurora Purple
Experience the pinnacle of automotive window technology with our Magnetron Sputtering Series.

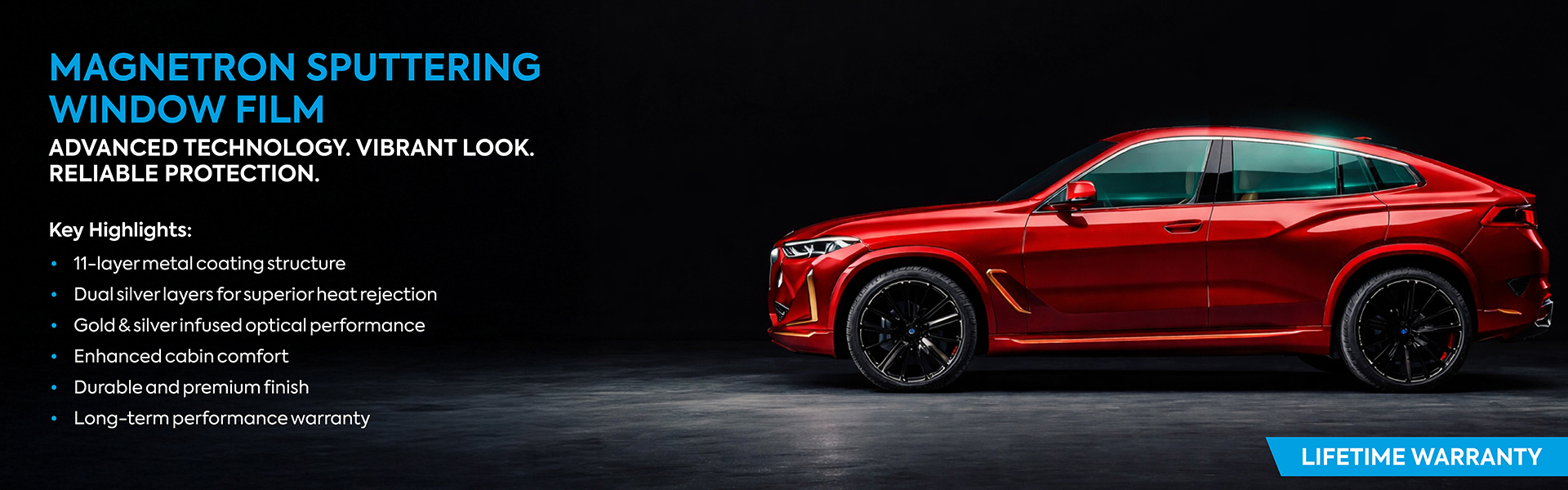

1. Magnetron Sputtering Premium Window Film
Engineered with 11-layer technology, our Magnetron Sputtering Film uses gold and silver infusion for superior infrared reflectivity and heat rejection. Perfect for the Indian climate.
| MODEL | THICKNESS | VLT(%) | IRR(%) | UVR(%) | VLR(%) | SH HARDNESS | TSER | WARRANTY |
|---|---|---|---|---|---|---|---|---|
| 15% VLT | 2.0 mil | 15 | 90 | 99 | 10 | ≥2H | 0.77 | LIFETIME |
| 35% VLT | 35 | 90 | 99 | 10 | ≥2H | 0.68 | ||
| 70% VLT | 70 | 90 | 99 | 12 | ≥2H | 0.55 |
Note: Maintenance Wash is recommended every 60 to 90 days for optimal protection of your vehicle's shine, at a cost of ₹1000 plus GST. Regular maintenance enhances appearance and extends lifespan.
- The Brand does not cover accidental damage from accidents, collisions, or external impacts.
- Any attempts by unauthorized personnel to remove or modify the PPF will void the warranty.
- The Detailing Mafia and Manmachine Car Care are not liable for franchise application errors; still, you can submit complaints online, and we will support you as much as we can.
- Color variations between panels due to PPF replacement are not covered under warranty.
2. Magnetron Sputtering Aurora Purple Premium Window Film
Elevate your ride with 15-layer magnetron sputtering technology featuring a unique Aurora Purple luxury finish. This premium film utilizes triple silver layers for exceptional results.
| MODEL | THICKNESS | VLT(%) | IRR(%) | UVR(%) | VLR(%) | SH HARDNESS | TSER | WARRANTY |
|---|---|---|---|---|---|---|---|---|
| 70% VLT Aurora Purple | 3.5 mil | 70 | 95 | 99 | 12 | ≥2H | 0.60 | LIFETIME |
*GST Extra Applicable
Note: Maintenance Wash is recommended every 60 to 90 days for optimal protection of your vehicle's shine, at a cost of ₹1000 plus GST. Regular maintenance enhances appearance and extends lifespan.
-
The Brand does not cover accidental damage from accidents, collisions, or external impacts.
-
Any attempts by unauthorized personnel to remove or modify the PPF will void the warranty.
-
The Detailing Mafia and Manmachine Car Care are not liable for franchise application errors; Still, you can submit complaints online, we will support you as much as we can.
-
Color variations between panels due to PPF replacement are not covered under warranty.
PRICING
| Product Name | Type | Package | Price Per Sq Ft |
Per Sq Ft | Hatchback | Sedan | SUV & High End Luxury |
|---|---|---|---|---|---|---|---|
|
CARBON TINT WINDOW FILM (3 Year Warranty) |
15% VLT | Full Car | ₹250 | Total Size (sqft) | 40 | 50 | 55 |
| Total Cost (₹) | ₹10,000 | ₹12,500 | ₹13,750 | ||||
| 35% VLT 50% VLT |
Both side Glass | Total Size (sqft) | 20 | 20 | 25 | ||
| Total Cost (₹) | ₹5,000 | ₹5,000 | ₹6,250 | ||||
| 70% VLT | Front Glass | Total Size (sqft) | 15 | 15 | 17 | ||
| Total Cost (₹) | ₹3,750 | ₹3,750 | ₹4,250 | ||||
| 80% VLT | Front & Rear Glass | Total Size (sqft) | 25 | 25 | 30 | ||
| Total Cost (₹) | ₹6,250 | ₹6,250 | ₹7,500 | ||||
|
CARBON CERAMIC WINDOW FILM (5 Year Warranty) |
80% VLT | Full Car | ₹300 | Total Size (sqft) | 40 | 50 | 55 |
| Total Cost (₹) | ₹12,000 | ₹15,000 | ₹16,500 | ||||
| Both side Glass | Total Size (sqft) | 20 | 20 | 25 | |||
| Total Cost (₹) | ₹6,000 | ₹6,000 | ₹7,500 | ||||
| Front Glass | Total Size (sqft) | 15 | 15 | 17 | |||
| Total Cost (₹) | ₹4,500 | ₹4,500 | ₹5,100 | ||||
| Front & Rear Glass | Total Size (sqft) | 25 | 25 | 30 | |||
| Total Cost (₹) | ₹7,500 | ₹7,500 | ₹9,000 | ||||
|
IR 99% NANO CERAMIC WINDOW FILM (10 Year Warranty) |
IR-05 IR-35 |
Full Car | ₹450 | Total Size (sqft) | 40 | 50 | 55 |
| Total Cost (₹) | ₹18,000 | ₹22,500 | ₹24,750 | ||||
| IR-50 | Both side Glass | Total Size (sqft) | 20 | 20 | 25 | ||
| Total Cost (₹) | ₹9,000 | ₹9,000 | ₹11,250 | ||||
| IR-70 BLUE, BLACK, GREEN | Front Glass | Total Size (sqft) | 15 | 15 | 17 | ||
| Total Cost (₹) | ₹6,750 | ₹6,750 | ₹7,650 | ||||
| IR-80 BLUE | Front & Rear Glass | Total Size (sqft) | 25 | 25 | 30 | ||
| Total Cost (₹) | ₹11,250 | ₹11,250 | ₹13,500 | ||||
| IR SPUTTER (10 Year Warranty) | IR-08 | Full Car | ₹550 | Total Size (sqft) | 40 | 50 | 55 |
| Total Cost (₹) | ₹22,000 | ₹27,500 | ₹30,250 | ||||
| Both side Glass | Total Size (sqft) | 20 | 20 | 25 | |||
| Total Cost (₹) | ₹11,000 | ₹11,000 | ₹13,750 | ||||
| Front Glass | Total Size (sqft) | 15 | 15 | 17 | |||
| Total Cost (₹) | ₹8,250 | ₹8,250 | ₹9,350 | ||||
| Front & Rear Glass | Total Size (sqft) | 25 | 25 | 30 | |||
| Total Cost (₹) | ₹13,750 | ₹13,750 | ₹16,500 | ||||
| MAGNETRON SPUTTERING (LIFETIME WARRANTY) |
15% VLT | Full Car | ₹750 | Total Size (sqft) | 40 | 50 | 55 |
| Total Cost (₹) | ₹30,000 | ₹37,500 | ₹41,250 | ||||
| 35% VLT | Both side Glass | Total Size (sqft) | 20 | 20 | 25 | ||
| Total Cost (₹) | ₹11,250 | ₹11,250 | ₹18,750 | ||||
| 35% VLT | Front Glass | Total Size (sqft) | 15 | 15 | 17 | ||
| Total Cost (₹) | ₹11,250 | ₹11,250 | ₹12,750 | ||||
| 70% VLT | Front & Rear Glass | Total Size (sqft) | 25 | 25 | 30 | ||
| Total Cost (₹) | ₹18,750 | ₹18,750 | ₹22,500 | ||||
| MAGNETRON SPUTTERING AURORA PURPLE (LIFETIME WARRANTY) |
70% VLT | Full Car | ₹800 | Total Size (sqft) | 40 | 50 | 55 |
| Total Cost (₹) | ₹32,000 | ₹40,000 | ₹44,000 | ||||
| Both side Glass | Total Size (sqft) | 20 | 20 | 25 | |||
| Total Cost (₹) | ₹16,000 | ₹16,000 | ₹20,000 | ||||
| Front Glass | Total Size (sqft) | 15 | 15 | 17 | |||
| Total Cost (₹) | ₹12,000 | ₹12,000 | ₹13,600 | ||||
| Front & Rear Glass | Total Size (sqft) | 25 | 25 | 30 | |||
| Total Cost (₹) | ₹20,000 | ₹20,000 | ₹24,000 |
BENEFITS
Naturally Cool Interiors
Enhances Overall Aesthetics With A Natural And Softer Shade
Protection Against Sun’s Harmful Rays
Less Fuel Consumption As The Need For The AC Will Be Limited
Prevents Fading And Discoloration Of The Upholstery
Lifetime warranty red: No Dementalization And Discoloration
Minimizes The GPS And Mobile Interferences
Increased Safety With Glass-Shatter-Resistance
